Products

PICOwatt®
Tenrehte PICOwatt® Smart Plug

PICOwatt® is our award winning, Best of CES 2010 in the Green Technology Category, patent-pending wireless smart plug designed to save you money by monitoring and reducing energy waste from any electric device. PICOwatt® is designed to be very simple to use and it takes just a few minutes to install, without tools or any additional software to load! And PICOwatt® works out of the box with any device you would plug into a wall outlet bringing the much talked about energy efficiency and energy conservation capabilities of the Smart Grid to you today, with or without a Smart Grid utility connection!

PICOwatt®, the Best of CES 2010 Green Technology Winner
Features and Benefits...

  • PICOwatt® Automates Curtailment
  • Built in electrical energy measurement with real time and history display
  • Export energy usage history for use in reports, etc.
  • Power On/Off consumer electronics, appliances, lights, and other devices remotely
  • Conserve energy by eliminating standby power or vampire power
  • Increase the life of electronic devices such as printers
  • Includes advanced timer functions for automatic On/Off of attached devices
  • Web based, fun, and easy to use
  • Access using Windows, MacOS, Linux, web enabled mobile devices and more
  • Review the PICOwatt® Frequently Asked Questions for tips on saving money
  • Buy your PICOwatt® from our Online Store

With the global customer in mind, PICOwatt® is designed to be used anywhere in the world and can be installed in commercial, residential or industrial facilities.

For example, electrical office equipment now makes up at least 25% of commercial energy use. Hands down this is one of the fastest growing uses of electrical energy. How much electrical energy is wasted at your office when employees go home after work leaving all the electrical office equipment on? PICOwatt® empowers you to monitor how much electricity these devices are using, at what time of day equipment is on, and exactly what you are spending to power attached devices. PICOwatt® also shows you what you are spending to power equipment, and most importantly, PICOwatt® enables you to control, and eliminate wasted energy use saving you money.

Tenrehte PICOwatt<sup>®</sup> Smart Plug

PICOwatt® helps you identify standby power. Standby power, also called vampire power, phantom load, or leaking electricity, refers to the electric power consumed by electric or electronic devices while they are switched off, enter sleep mode, or are in standby mode. You believe the device is essentially off, and you might even hear the satisfying click of an internal relay or switch when you turn off your electronic devices. In reality the unit is still powered on, internally wasting electricity and running up your electric bill. By continually monitoring your devices, PICOwatt® shows you how much energy is being wasted when a unit is supposed to be switched off.

To eliminate standby power, PICOwatt® enables you to intelligently control the power supplied to plugged-in appliances. By creating profiles to automatically turn off the power when the attached equipment is not needed, standby power consumption is reduced to zero.

PICOwatt® also includes predictive analytics to help you uncover unexpected energy usage so that you can make smarter energy conservation decisions to improve your energy efficiency. PICOwatt® includes easy-to-use predictive analytics features that meet the needs of users with skill levels from beginners to experienced users to identify and eliminate energy waste.

Unlike other products you can buy for electrical energy monitoring, PICOwatt® requires no additional support equipment such as one or more computers, radio dongles, and additional gateways to build a system to monitor and control your electrical energy use - additional equipment that adds cost, consumes additional electricity, and simply wastes your money.

PICOwatt® is a fault tolerant, standalone, set and forget Smart Plug that is built upon a sophisticated blend of hardware, software, and algorithms all developed by Tenrehte Technologies to help you get control of your energy use and save you money on your electrical utility bill.

Tenrehte PICOwatt<sup>®</sup> Smart Plug

And while one PICOwatt® can operate by itself, if you have more than one PICOwatt® on your network they cooperate to save you even more money and greatly enhance your energy efficiency and energy conservation targets. PICOwatt® also provides you with additional value added features such as the ability to be accessed from any internet enabled device, Smart Phone apps, and a Facebook application which enhances the social aspects of energy efficiency and energy conservation.

In support of emerging Smart Grid applications, PICOwatt® is compliant with Smart Meter requirements such as Zigbee SEP 1.x, Zigbee SEP 2.0, CEA-2045 and the Energy Usage Information Model.

PICOwatt® Automates Curtailment

The word is out. Energy storage with batteries (or any other type of storage) is not as effective as curtailment technologies to furthering renewable energy and energy independence. Please see this page or PDF for a full report on curtailment.

The use of two-way communications, sensors, and distributed automation technology will dramatically improve the efficiency, reliability, and safety of power delivery and use.

Load Adjustment/Load Balancing

The total load connected to the power grid can vary significantly over time. Believe it or not, the total power load depends on many individual choices of energy users. For example, the grid becomes unstable if a popular television program starts and millions of televisions draw current instantly, or many electric vehicles are plugged in all at once.

Automatic load reduction with intelligent sensors and switches from our PICOwatt® product line dramatically increases the strength of our Grid and provides a better chance for renewable energy sources to be effectively integrated.

Peak Curtailment/Leveling and Time Of Use Pricing

To reduce demand during the high cost peak usage periods, communications and metering technologies inform smart devices in the home and business when energy demand is high and track how much electricity is used and when it is used.

It also gives utility companies the ability to reduce consumption by communicating to devices directly in order to prevent system overloads.

Businesses and consumers see a direct economic benefit of using energy at off-peak times, including reducing energy cost of operation into their services, devices, and building construction decisions.

Sustainability

A flexible smart grid permits greater access to highly variable renewable energy sources such as solar power and wind power, even without the addition of energy storage.

PICOwatt® and PICO™ Technology enables existing network infrastructure to allow for many distributed feed-in points at the transmission-level. Rapid fluctuations in distributed generation, such as due to cloudy or gusty weather, present significant challenges to power engineers who need to ensure stable power levels through varying the output of the more controllable generators such as gas turbines and hydroelectric generators. PICOwatt® and PICO™ Technology is a bridge technology to enable improved flexibility and sustainability for energy consumers.

The Bottom Line

The bottom line? PICOwatt® from Tenrehte Technologies makes it simple for you to go green and save money. The more PICOwatt® Smart Plugs you install, the more money you will save!

Please visit the PICOwatt® Frequently Asked Questions page for more information.

Tenrehte PICOwatt<sup>®</sup> Smart Plug

Ordering Information...
Packaged Products
Model Number Description
1000S00000 PICOwatt® Smart Plug
Wi-Fi Only
Cordset: NOT INCLUDED
1000S00001 PICOwatt® Smart Plug
Wi-Fi Only
Cordset: North America, 125V 15A rating
Inlet Cord: 3 Foot (0.8 m) Nema 5-15P to IEC C13
Outlet Cord: 1.5 Foot (0.5 m) Nema 5-15R to IEC C14
1000S00010 PICOwatt® Smart Plug-T
Wi-Fi plus one (1) auto speed-sensing 10BASE-T Ethernet / 100BASE-TX Fast Ethernet RJ-45 port
Cordset: NOT INCLUDED
1000S00011 PICOwatt® Smart Plug-T
Wi-Fi plus one (1) auto speed-sensing 10BASE-T Ethernet / 100BASE-TX Fast Ethernet RJ-45 port
Cordset: North America, 125V 15A rating
Inlet Cord: 3 Foot (0.8 m) Nema 5-15P to IEC C13
Outlet Cord: 1.5 Foot (0.5 m) Nema 5-15R to IEC C14
Accessories, Order Separately
Model Number Description
9000S00000 Cordset: North America, 240V 10A rating
Inlet: 3 Foot (0.8 m) No Connector (bare end) to IEC C13
Outlet: 1.5 Foot (0.5 m) No Connector (bare end) to IEC C14
9000S00003 Cordset: North America, 125V 15A rating
Inlet: 3 Foot (0.8 m) Nema 5-15P to IEC C13
Outlet: 1.5 Foot (0.5 m) Nema 5-15R to IEC C14
9000S00006 Cordset: North America, 240V 10A rating
Inlet: 3 Foot (0.8 m) Nema 6-20P to IEC C13
Outlet: 1.5 Foot (0.5 m) Nema 6-20R to IEC C14
9000S00009 Cordset: UK, 240V 10A rating
Inlet: 3 Foot (0.8 m) UK Plug to IEC C13
Outlet: 1.5 Foot (0.5 m) UK Receptacle to IEC C14
9000S00012 Cordset: EU, 240V 10A rating
Inlet: 3 Foot (0.8 m) Schuko Plug to IEC C13
Outlet: 1.5 Foot (0.5 m) Schuko Receptacle to IEC C14
9000S00015 Cordset: AU/NZ, 240V 10A rating
Inlet: 3 Foot (0.8 m) AU Plug to IEC C13
Outlet: 1.5 Foot (0.5 m) AU Receptacle to IEC C14

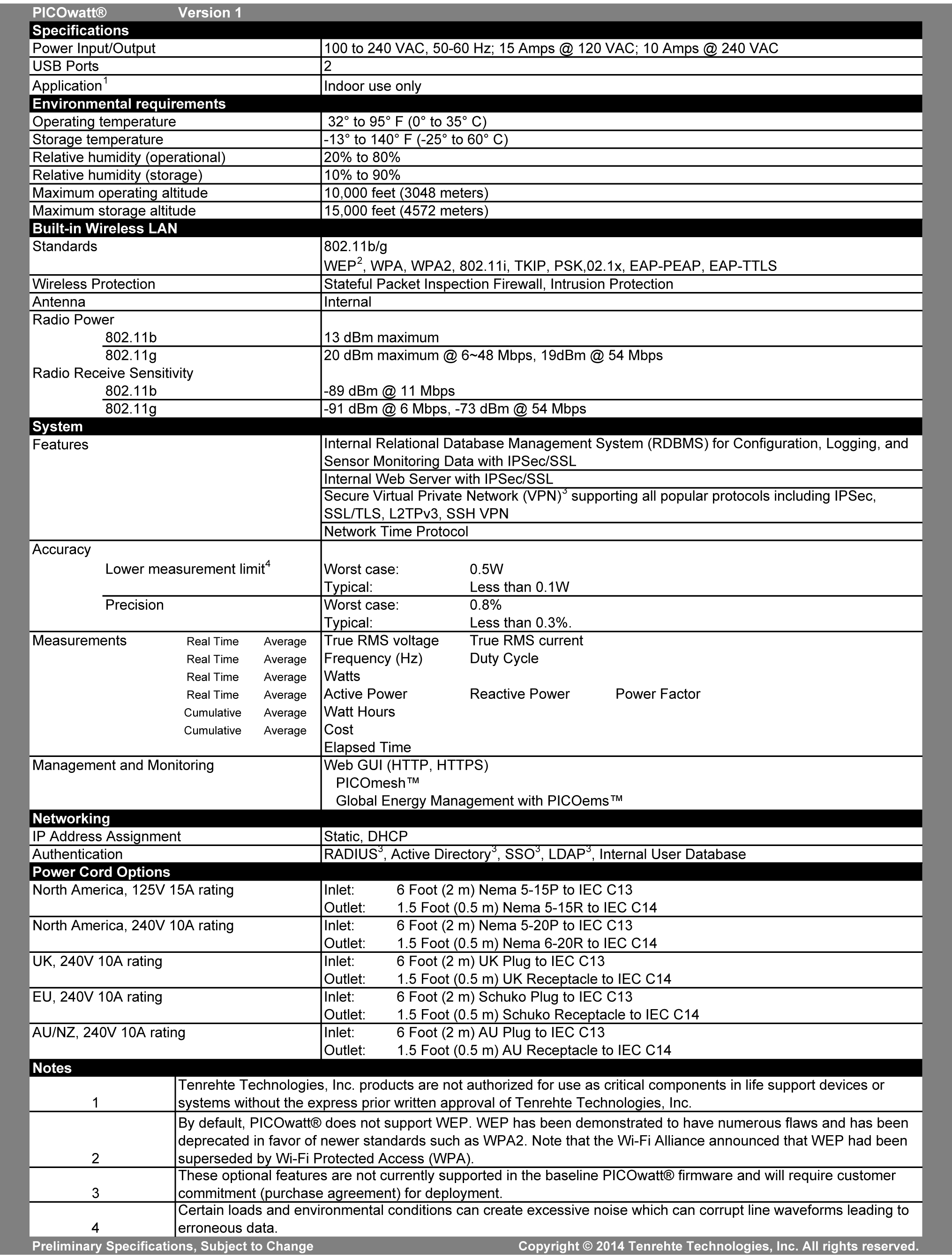

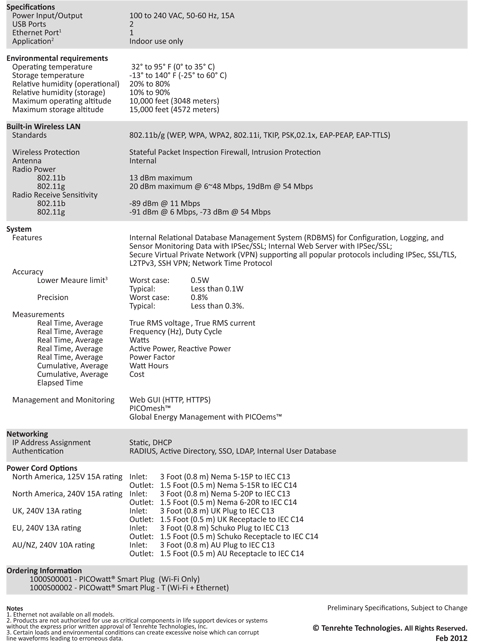

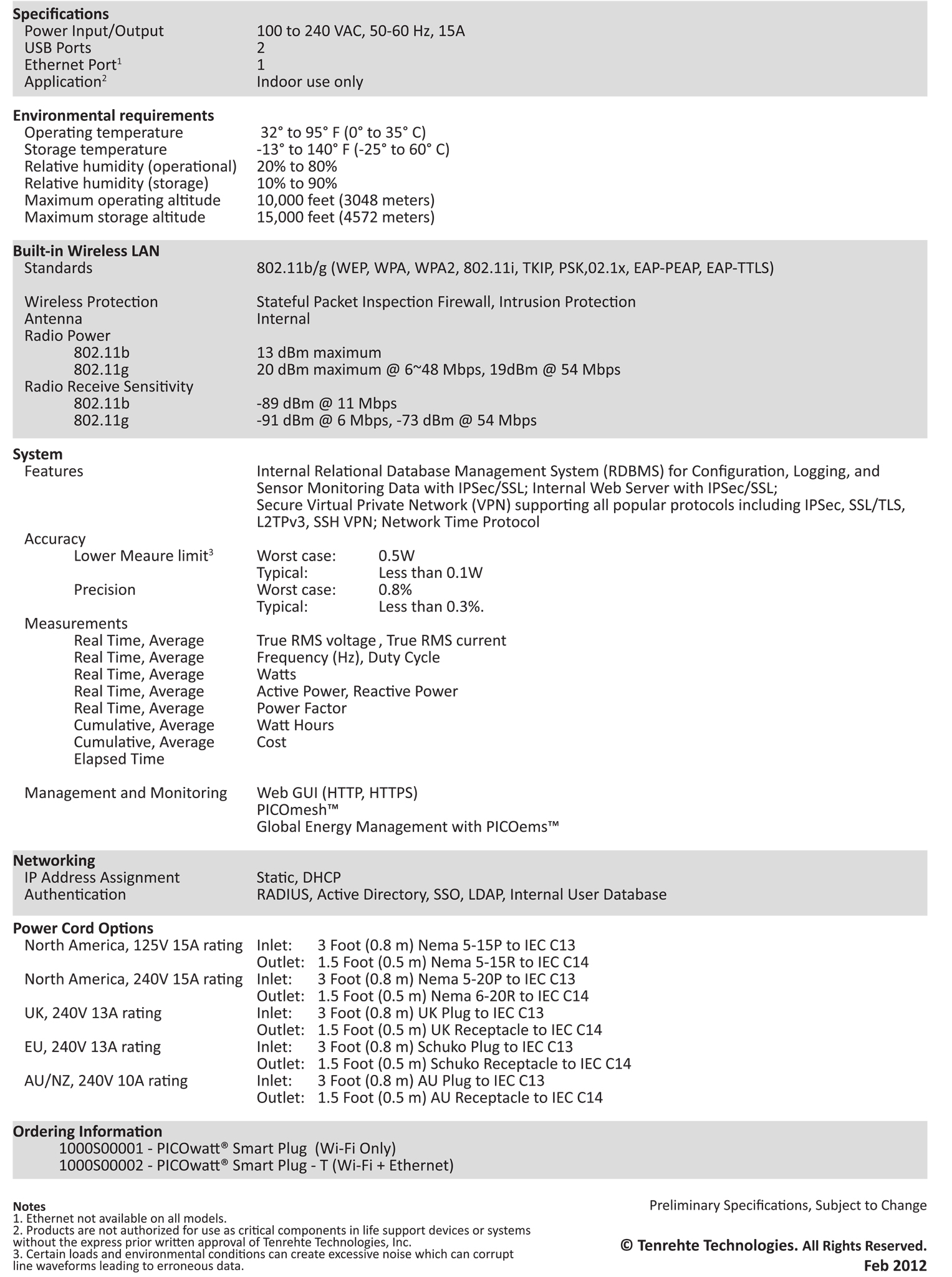

PICOwatt® Smart Plug Product Specifications

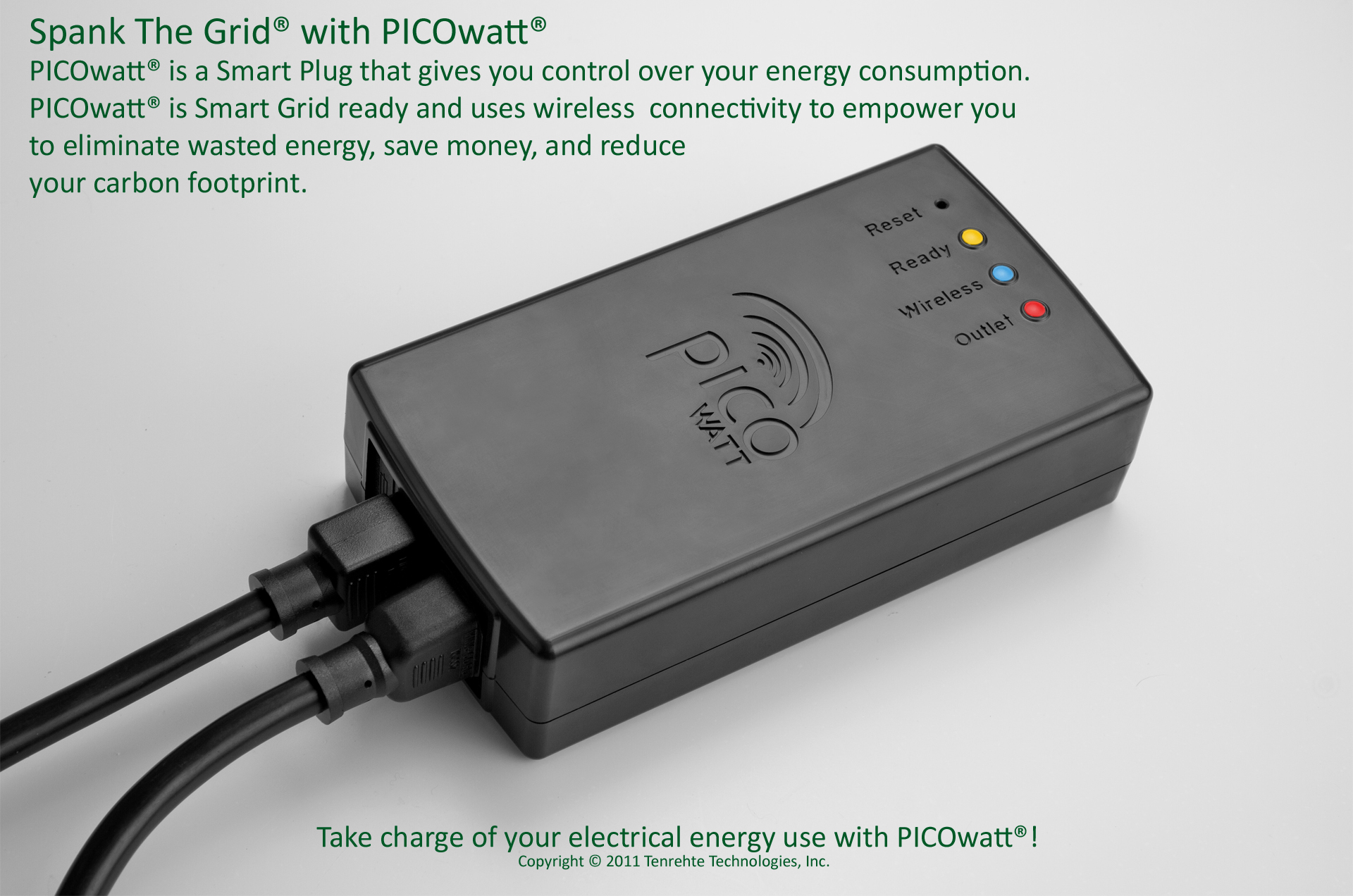

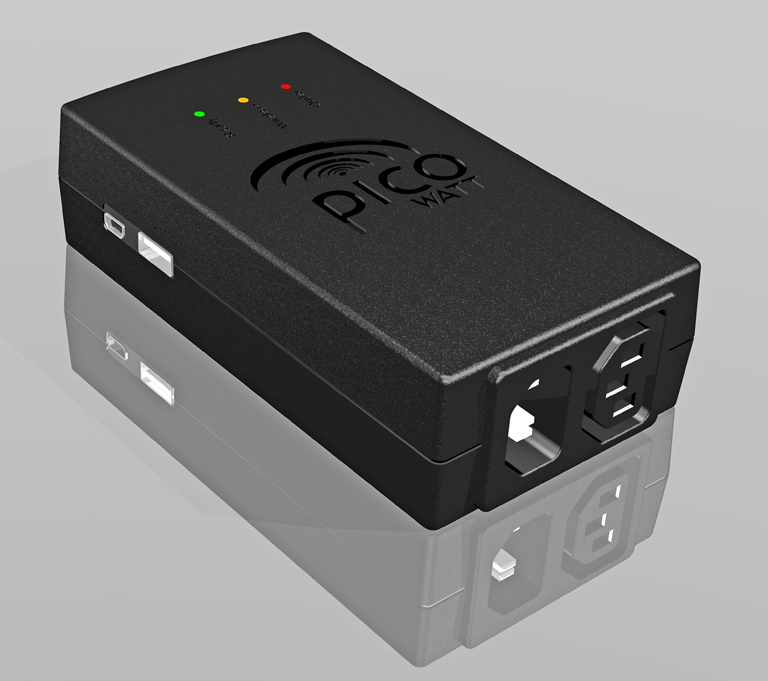

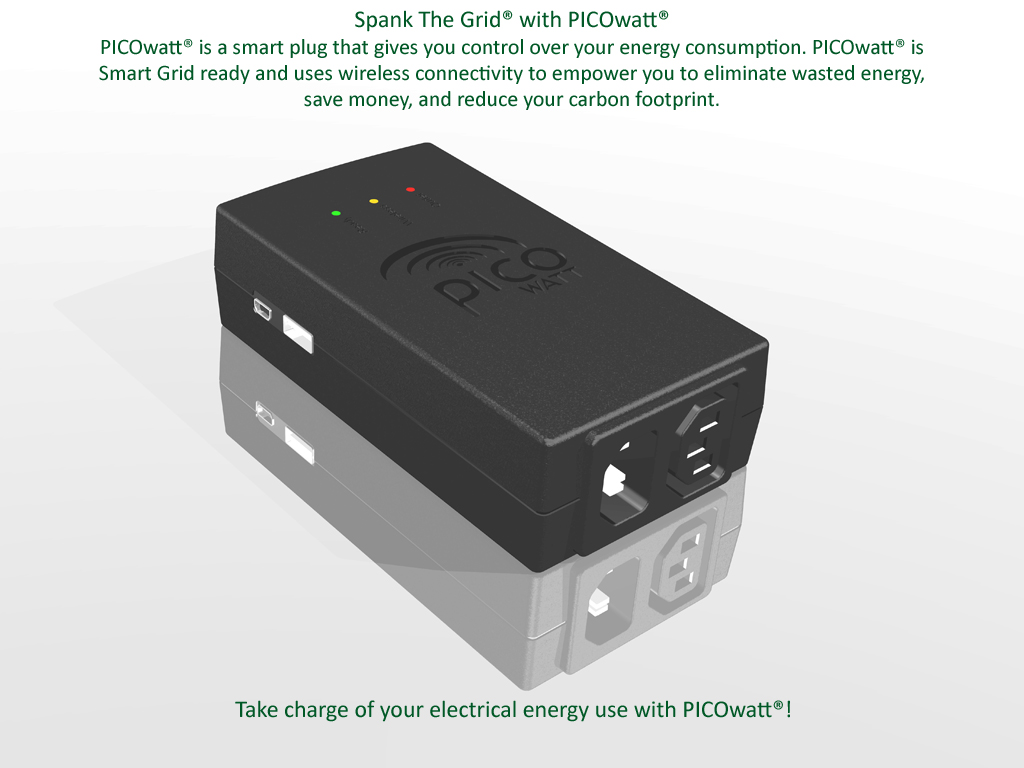

PICOwatt® Product Images...
